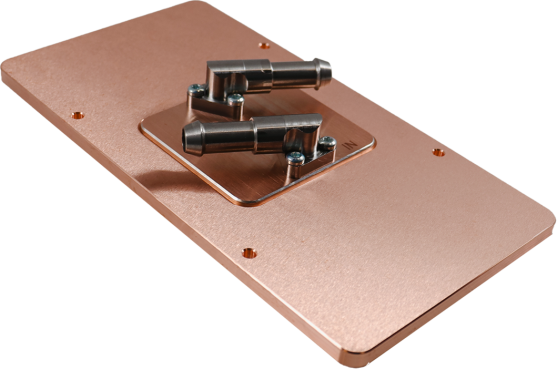

The Mikros AX-H100 is a high performance cold plate designed specifically for the Nvidia H100 GPU. Utilizing our patented MikroMatrix cooling technology, the AX-H100 combines high cooling capacity with low pressure drop for efficient thermal management of the Nvidia H100 die as well as its peripheral components. Our solutions will tailor the flow to target the highest power density areas on the H100 die, getting more from your flow. This allows you to reduce your pumping requirements, increases the efficiency of your chiller and the entire loop, and saves on power costs and space.
AX-H100 Technology

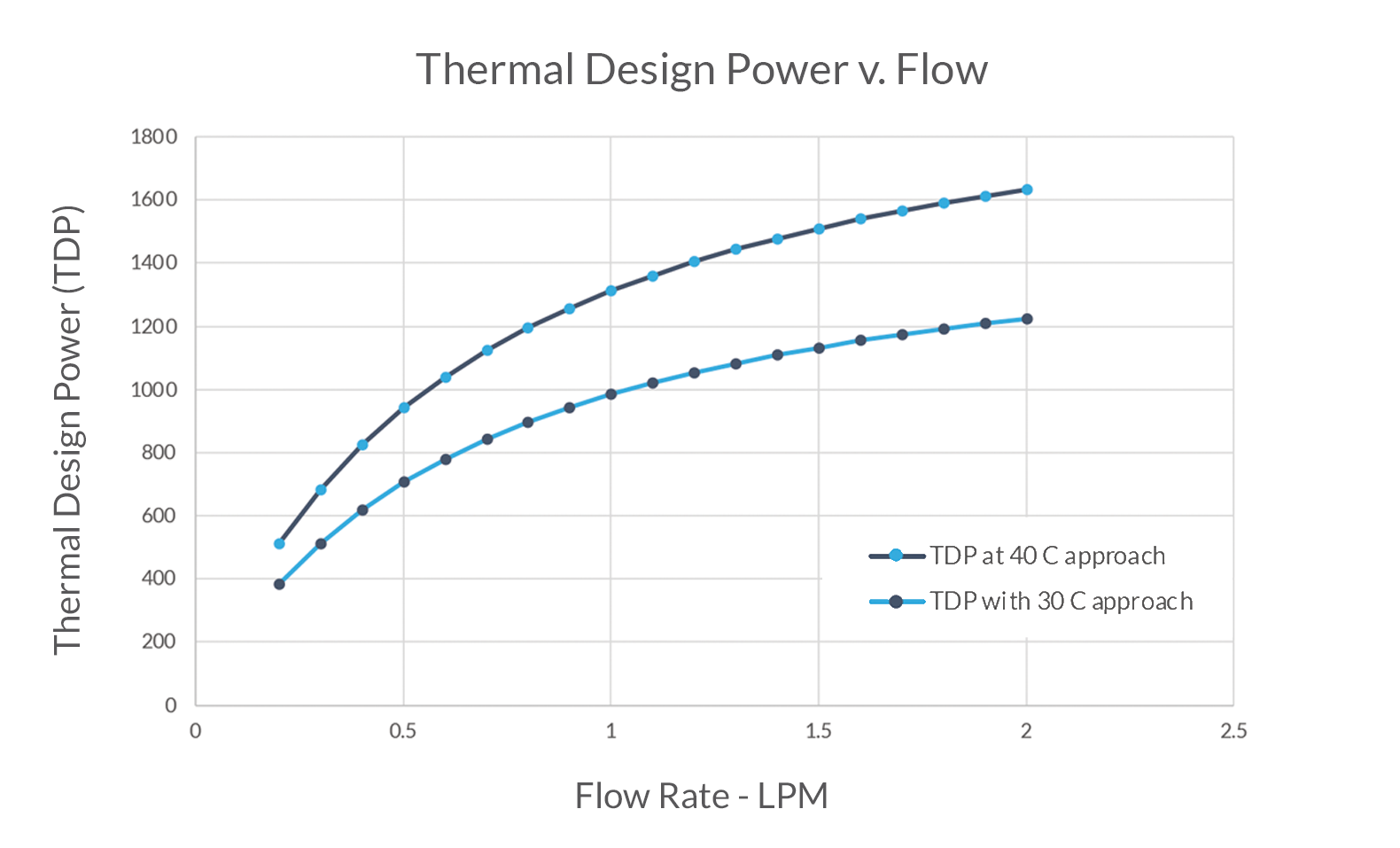

- Cooling Capacity [cold plate] 50 W/C at 1 LPM*
- Cooling Capacity [including Tim & package] 25 W/C at 1 LPM*

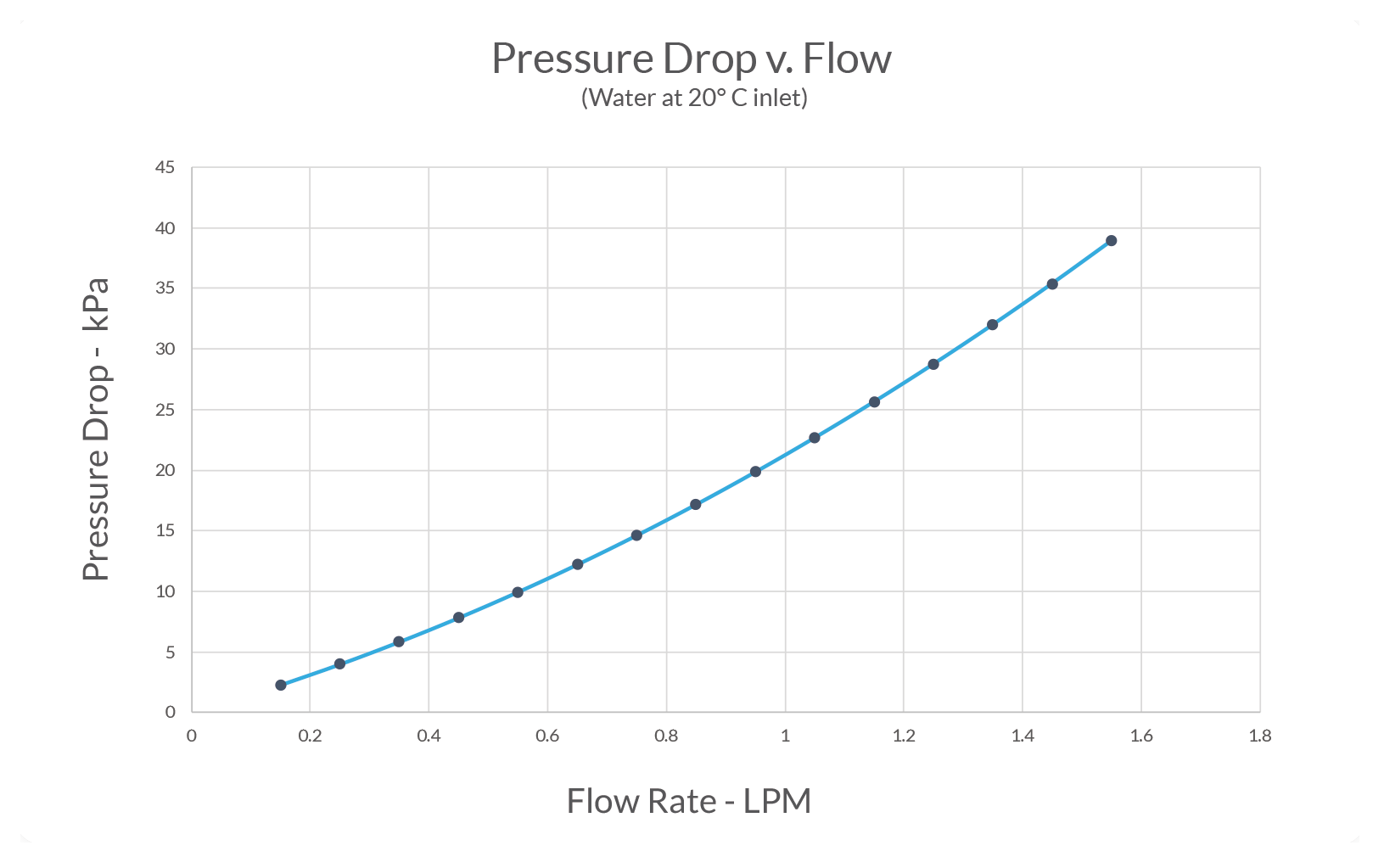

- Low Pressure Drop 3 psi at 1 LPM*
- High Cooling Value High heat transfer effectiveness, low cost per Watt dissipated
- High Reliability Helium Leak and Thermal Tested for over 18 years
- Tailored Cooling Normal flow matrices provide maximum cooling over core die, reduced flow over HBM die to maximize efficiency.
*assumes PG30/W70 at 40C, DowSil Tim

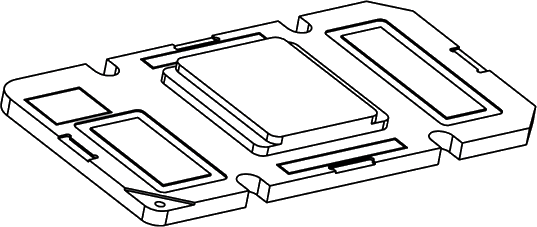

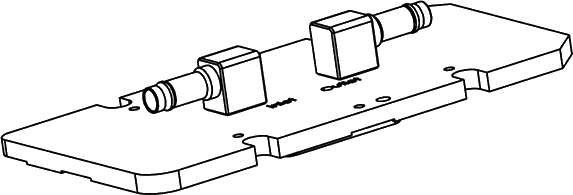

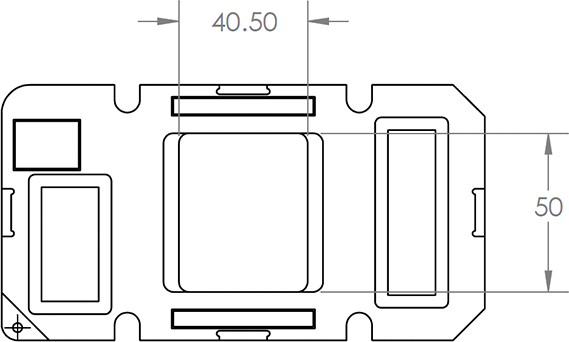

AX-H100 Design Sketches
Download AX-H100 Datasheet
If you would like a PDF version of our datasheet for further analysis or to send along to your team, follow the link below
